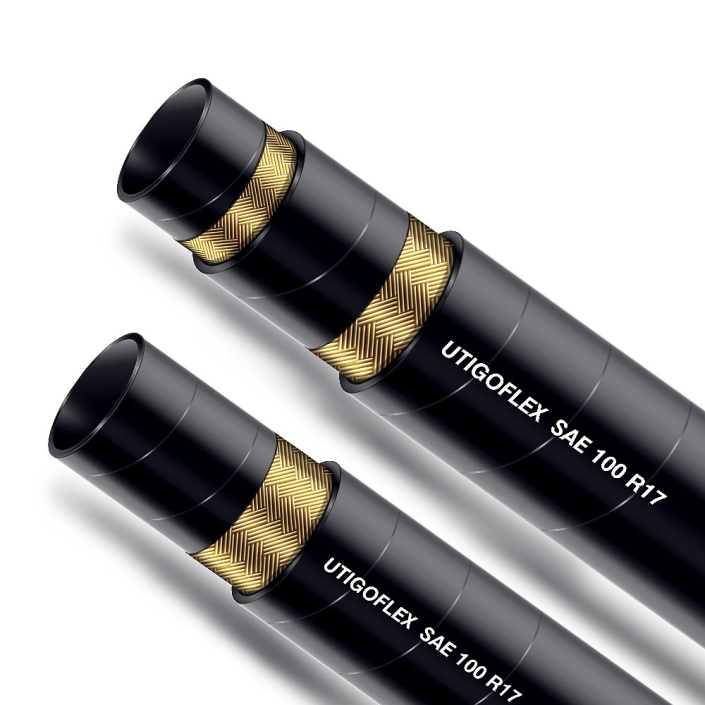

SAE 100 R17 Steel Wire Braided Hydraulic Hose
Application:
This hose is suitable for some equipment whose installation space is compact and narrow,because it has smaller bending radius and outside diameter.
Applicable specs.: SAE J517 100 R17, ISO 11237 R17.
Features
1.The tube is made from black oil resistant synthetic rubber,making the hose widely used in delivering oils.
2.The reinforcement is made from one layer or two layers of high tensile braided steel wire,making the hose have high working pressure.
3.The cover is made from super high quality weather resistant synthetic rubber,making the hose resistant to abrasion,corrosion,weather, ozone,aging and cut.
4.Having longer service life.
Material:
Tube: Black oil resistant synthetic rubber.
Reinforcement: One layer or two layers of high tensile braided steel wire.
Cover :Weather resistant synthetic rubber.
Working temperature range: -40°C to +100°C.
Product Advantages
1.The tube is made from black oil resistant synthetic rubber,making the hose widely used in delivering oils.
2.The reinforcement is made from one layer or two layers of high tensile braided steel wire,making the hose have high working pressure.
3.The cover is made from super high quality weather resistant synthetic rubber,making the hose resistant to abrasion,corrosion,weather, ozone,aging and cut.
4.Having longer service life.
Application
This hose is suitable for some equipment whose installation space is compact and narrow
Feature
Good resistance to oil, abrasion, corrosion, weather, ozone, aging and cut.
.
Material
Oil resistant synthetic rubber tube + One layer or two layers of high tensile braided steel wire.
.
Temperature
Min working temperature is – 40°C, and the max working temperature is + 100°C.
Multiple types
There are optional inner diameter,thickness, length in terms of size.You can also choose different colorsto match your equipments.
Private design
We offer OEM/ODM and 3D design, send us your file(or we design for you), lf everything is ok, the production will begin based on your drawings.
